2025 Toyota Tundra Towing Capacity With Charts
2025 Toyota Tundra Towing Capacity at a Glance
For 2025, the Toyota Tundra towing capacity returns at a fantastic 12,000 pounds.1 This hauling prowess is excellent for pulling campers, fishing rigs, and livestock trailers safely and securely, among other things. The team at DARCARS Toyota of Silver Spring put this guide together to help you compare towing and payload capacities by trim, model year, engine, configuration, and more to help you decide which Tundra earns a spot in your driveway. Before you dive in, take a look at some of the 2025 highlights:
- The 2025 Toyota Tundra boasts an available towing capacity of up to 12,000 pounds1 – the same impressive maximum hauling prowess it's had since the 2022 model year – and a minimum towing capacity of 8,300 pounds.1
- You can get the 12,000-pound1 towing strength with an SR5 trim equipped with rear-wheel drive, a 6.5-foot bed, and a Double Cab.
- The minimum 8,300-pound towing capacity can be found on all SR models, as they come with a gas engine that's tuned for slightly less power than the powertrains in the other gas models in the lineup.
- SR and SR5 models share the title for maximum payload capacity, reaching 1,940 pounds when they're equipped with rear-wheel drive, a 6.5-foot bed, and a Double Cab.
- The range-topping Capstone model has the lowest payload capacity in the lineup – 1,485 pounds – due to its dozens of additional amenities and spacious CrewMax cabin.
- Explore configuration and towing features at DARCARS Toyota of Silver Spring.
Toyota Tundra Towing Capacity & Payload Chart by Model Year
| Year | Max. Towing | Max. Payload |
| 2025 Tundra | 12,000 lbs1 | 1,940 lbs |
| 2024 Tundra | 12,000 lbs1 | 1,940 lbs |
| 2023 Tundra | 12,000 lbs1 | 1,940 lbs |
| 2022 Tundra | 12,000 lbs1 | 1,940 lbs |
| 2021 Tundra | 10,200 lbs1 | 1,730 lbs |
2025 Toyota Tundra Capability by Trim
| Trim | Horsepower | Torque | Transmission | Max. Payload | Max. Towing |
| SR | 358 | 406 lb-ft | 10-speed auto | 1,820 - 1,940 lbs | 8,300 lbs1 |
| SR5 | 389 | 479 lb-ft | 10-speed auto | 1,720 - 1,940 lbs | 11,010 - 12,000 lbs1 |
| Limited | 389 | 479 lb-ft | 10-speed auto | 1,645 - 1,755 lbs | 10,970 - 11,350 lbs1 |
| Limited i-FORCE MAX | 437 | 583 lb-ft | 10-speed auto | 1,605 - 1,680 lbs | 11,040 - 11,450 lbs1 |
| Platinum | 389 | 479 lb-ft | 10-speed auto | 1,575 - 1,720 lbs | 10,890 - 11,310 lbs1 |
| 1794 Edition | 389 | 479 lb-ft | 10-speed auto | 1,575 - 1,720 lbs | 10,890 - 11,310 lbs1 |
| Platinum i-FORCE MAX | 437 | 583 lb-ft | 10-speed auto | 1,565 - 1,640 lbs | 10,960 - 11,380 lbs1 |
| 1794 Edition i-FORCE MAX | 437 | 583 lb-ft | 10-speed auto | 1,565 - 1,640 lbs | 10,960 - 11,380 lbs1 |
| TRD Pro | 437 | 583 lb-ft | 10-speed auto | 1,600 lbs | 11,175 lbs1 |
| Capstone | 437 | 583 lb-ft | 10-speed auto | 1,485 lbs | 10,340 lbs1 |

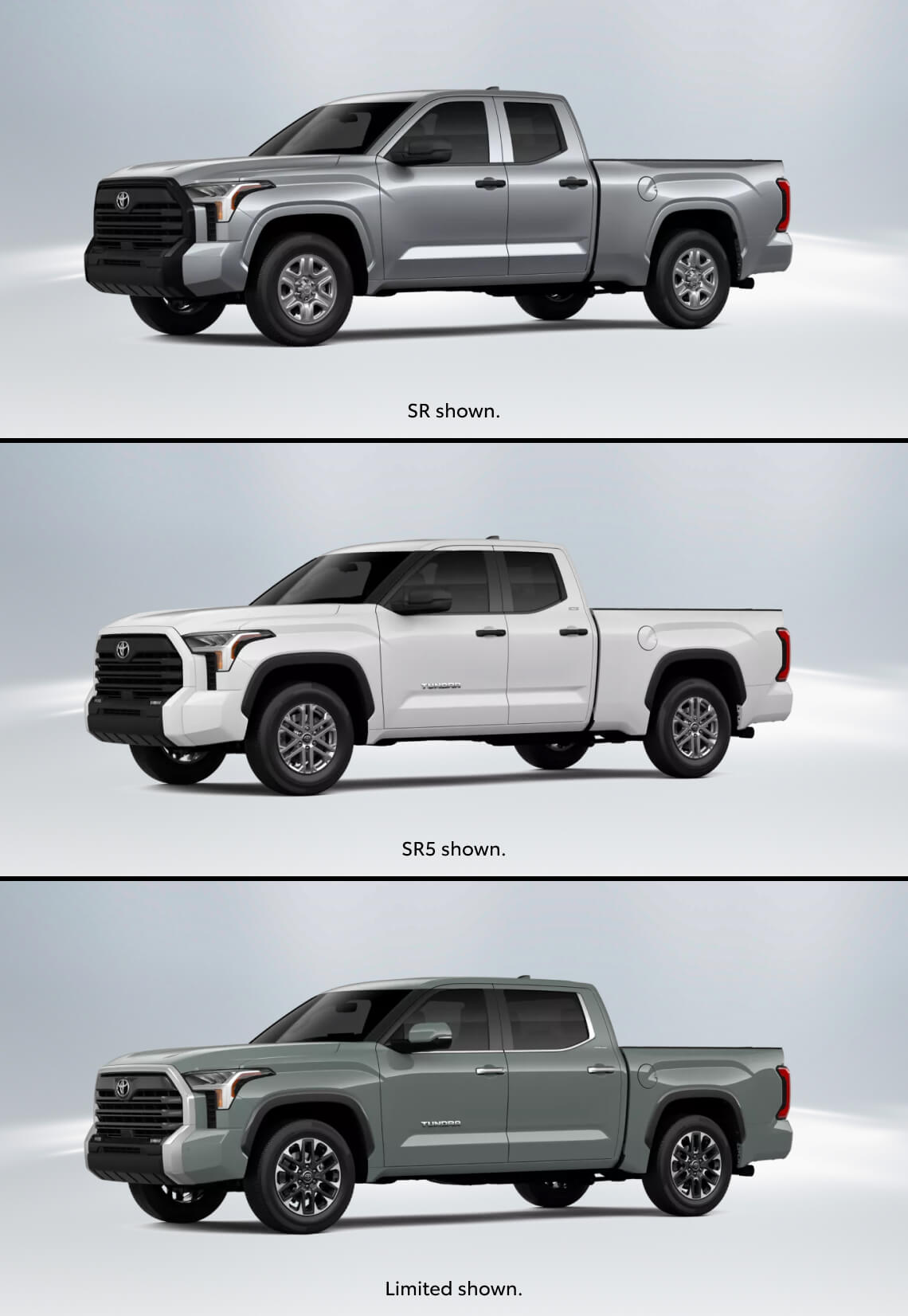

Toyota Tundra Towing Capacity by Engine
The 2025 Toyota Tundra towing capacity provides new truck shoppers with a wide range of options. A new 2025 Tundra can tow between 8,300 pounds and 12,000 pounds depending on trim level, engine, and other configuration selections.1
The starting towing capacity for the Toyota Tundra is 8,300 pounds on the SR trim,1 which is still ample power for towing a small trailer or outdoor toys. The standard engine for the Tundra SR is an i-FORCE 3.4-liter twin-turbo V-6 engine that generates 358 horsepower and 406 pound-feet of torque.
There are two other powertrains for the 2025 Toyota Tundra. A tuned-up iteration of the previously mentioned i-FORCE 3.4-liter twin-turbo V-6 that puts out 389 horsepower and 479 pound-feet of torque offers the most potent towing capabilities in the lineup when it's paired with rear-wheel drive and nestled under the hood of an SR5 trim with a 6.5-foot bed and a Double Cab.1
The final motivator is the i-FORCE MAX 3.4-liter twin-turbo V-6 hybrid powertrain that puts 437 horsepower and 583 pound-feet of torque at your command. It's an eco-friendly setup that can be equipped to the Tundra beginning at the Limited trim level – it's also plenty competent, with its highest hauling potential reaching 11,450 pounds.1 This is achieved when the Limited i-FORCE MAX pickup is built with a 4x2 drivetrain with a 5.5-foot bed and a CrewMax cab. While it's strong, it's not the choice for the trucker looking for that extra bit of pull.
No matter what engine you have your sights set on, it will be paired with a 10-speed automatic transmission, enabling the Tundra to deliver a smooth and powerful ride. Each powertrain also provides an exceptional payload range, with gas options ranging from 1,575 pounds to 1,940 pounds and the i-FORCE MAX rigs offering between 1,485 pounds and 1,680 pounds.
Toyota Tundra Towing Capacity by Configuration
In addition to the numerous engine options and trim levels, there are also four bed and cab configurations that you can select from for the Tundra. Let's explore which cab and bed options are available for each trim level.

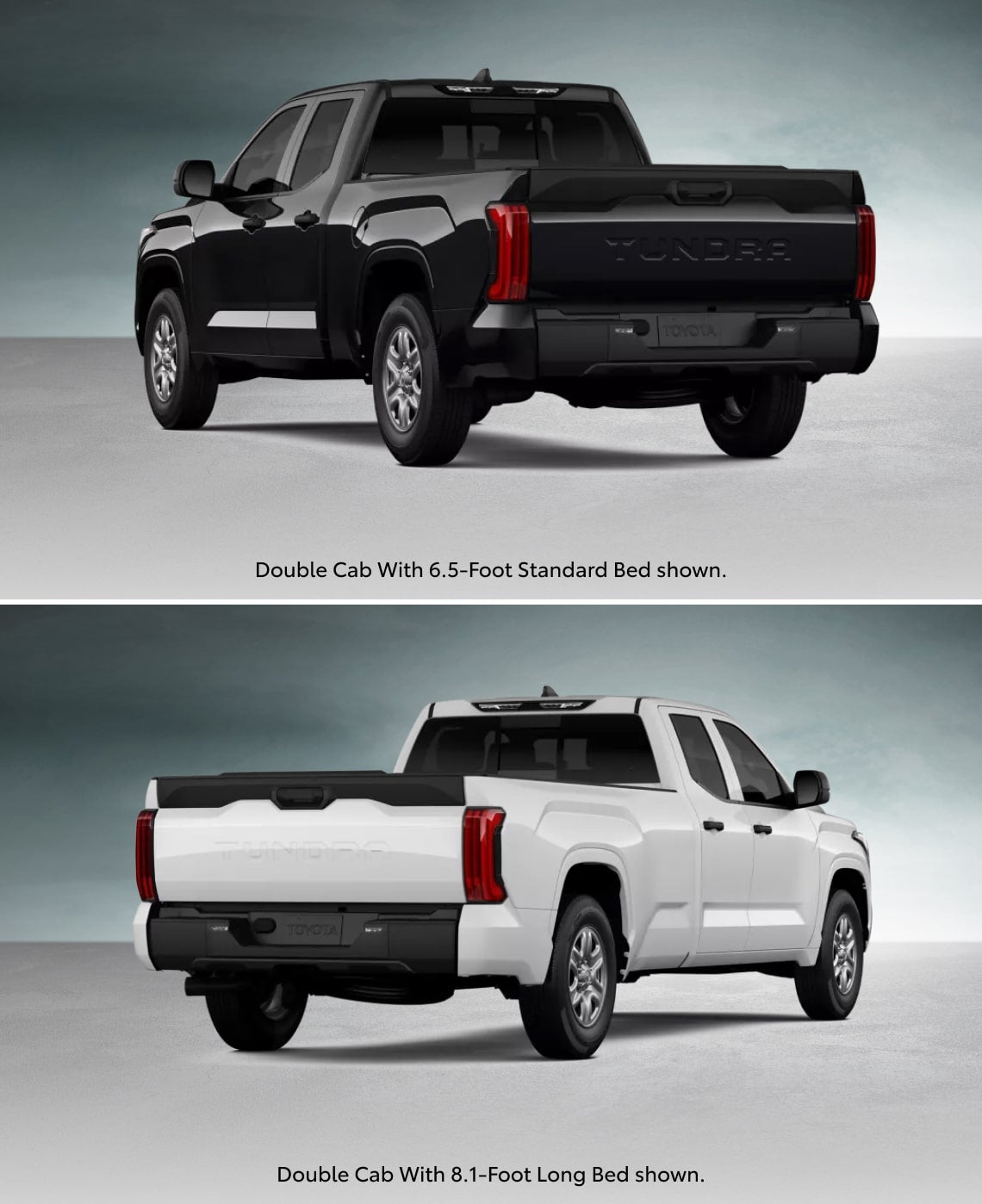

Double Cab With 6.5-Foot Standard Bed
The standard configuration for the Toyota Tundra is where you'll find the maximum towing capacity of 12,000 pounds1 and payload limit of 1,940 pounds. This bed and cab configuration is available for the following models:
- SR
- SR5
Double Cab With 8.1-Foot Long Bed
The Double Cab and 8.1-foot long bed combination – along with the previously mentioned setup – has the most condensed trim options. While it's available for the same models, it will reduce your towing and payload capacities slightly. For instance, the SR5 with this build has a maximum towing capacity of 11,090 pounds instead of 12,000 pounds.1 Build the Tundra trims mentioned below with this cab and bed style:
- SR
- SR5

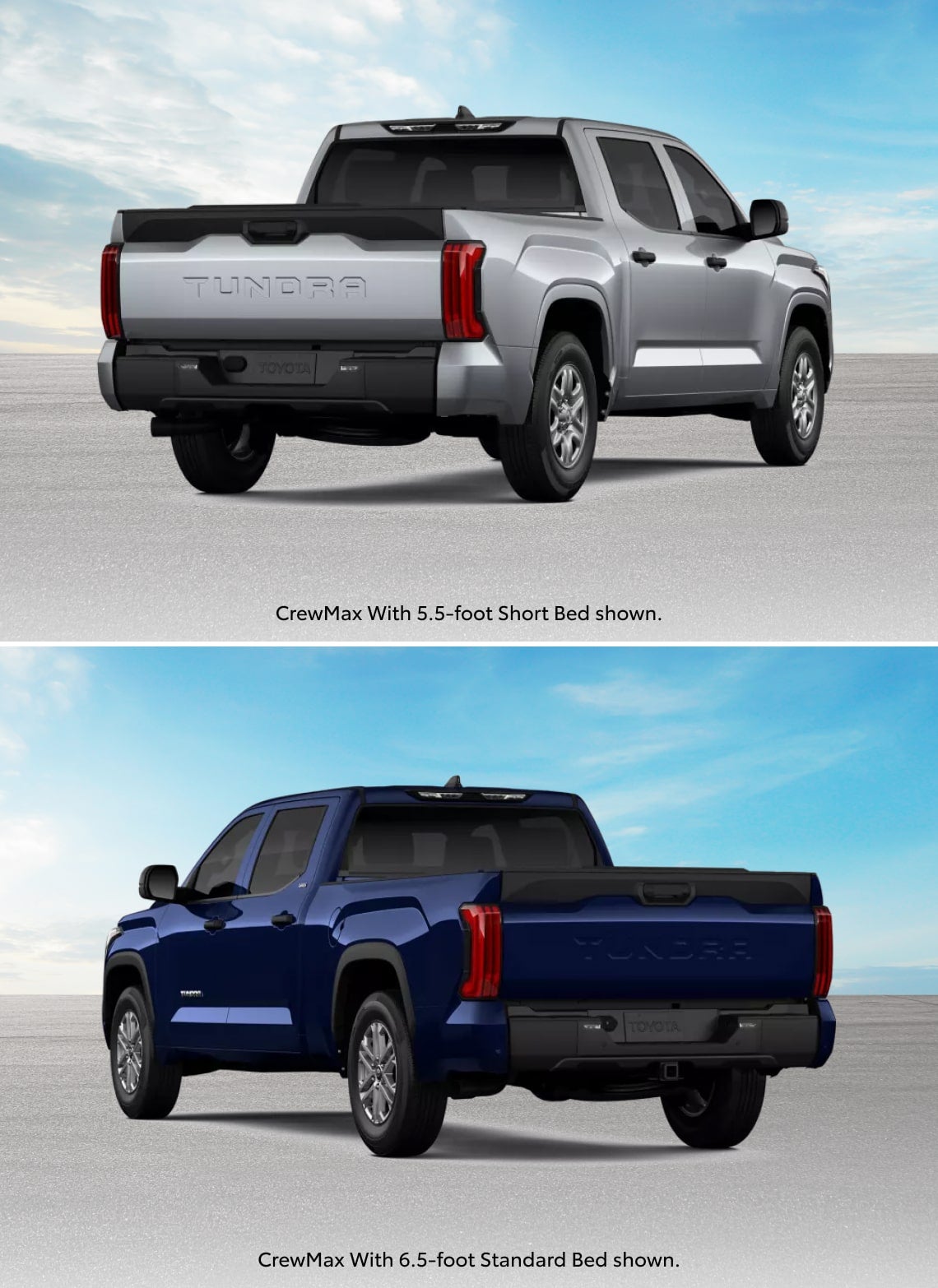

CrewMax With 5.5-foot Short Bed
A CrewMax Cab with a 5.5-foot bed has the most widespread availability throughout the 2025 Toyota Tundra lineup – in fact, it's available for every single model – and gives you 41.6 inches of rear legroom, making it an excellent choice for your crew's comfortability. However, you won't be able to pull as much. For example, a Limited CrewMax 5.5-foot build can carry 1,755 pounds in the bed or haul 11,350 pounds1 behind it. As mentioned, the CrewMax and 5.5-foot bed is available for every Tundra iteration:
- SR
- SR5
- Limited
- Platinum
- 1794 Edition
- Platinum i-FORCE MAX
- 1794 Edition i-FORCE MAX
- TRD Pro
- Capstone
CrewMax With 6.5-foot Standard Bed
This configuration boasts excellent cabin space and cargo volume, making it great for comfort, but the extra weight means it has the lowest payload and towing capabilities of any configuration. You can find this combination with the following trims:
- SR5
- Limited
- Platinum
- 1794 Edition
- Platinum i-FORCE MAX
- 1794 Edition i-FORCE MAX
Toyota Tundra Towing Features
When you shop new Toyota inventory for one of these many variants, be sure to look at the features each trim level has on tap. For example, right out of the gate, you'll get a standard Trailer-Sway Control system, giving you a better command of any cargo you hitch to the back of your Toyota Tundra.
The available Trailer Backup Guide with Straight Path Assist gives you a mindful view of your surroundings as you ease your trailer into a parking spot. Starting with the SR5, you'll get an Integrated Trailer Brake Controller as standard, with a seven-pin/four-pin wiring harness to keep your trailer electronically controlled. The base SR has a tow package with many of these bonus features included, so you can still tow responsibly from the base level.
TOW/HAUL driving modes, standard on the SR5 onward, let you switch to the most optimal speeds to get your trailer moving – even through rougher terrain. The Tow Tech Package, another optional upgrade beginning with the 2025 Toyota Tundra SR5, includes an exterior antenna and Wireless Trailer Camera to improve your mindfulness on thinner roads. You can even get premium tow mirrors with Blind Spot Monitor and Panoramic View Monitor functionality as optional equipment for the SR5 to assist in guiding your drive.
As you climb higher, you can access even greater ways to utilize your Toyota Tundra towing capacity. Standard and available hauling features – whether mentioned here or not – are how the 2025 Toyota Tundra towing capacity becomes more than just a number; it becomes your trusted travel companion, keeping you and your cargo safe for many miles to come.
Learn More at DARCARS Toyota of Silver Spring
The Toyota Tundra conquers the road with impressive towing and payload specs, but it's far from the only tow-capable vehicle on our lot. For a truck that can still handle plenty of big jobs while being more nimble than the full-size Tundra, see the Toyota Tacoma towing capacity. You might benefit from a truck with over 6,000 pounds of towing capability1 with less curb weight and better MPG ratings.
Alternatively, if you're looking for a family-centric vehicle that combines excellent trunk space with acceptable towing abilities for vacations, our Toyota Highlander Hybrid towing capacity guide should be the next stop on your research tour.
Once you find the car, truck, or SUV of your dreams, visit our showroom, and one of our representatives will be happy to show you how your choice can uplift your worksite, daily commuting, and family vacations.
Frequently Asked Questions
Which Toyota Tundra has the highest towing capacity?
The Toyota Tundra model with the maximum towing capacity is the SR5 trim level with a 4x2 drivetrain, the i-FORCE 3.4-liter V-6 powertrain, a Double Cab, and a 6.5-foot bed configuration. This setup can tow up to 12,000 pounds,1 plenty for campers, livestock carriers, and even mid-size fishing boat trailers. The Tundra SR is the lowest, at 8,300 pounds.1
Which Tundra can tow 12,000 pounds?
The only Toyota Tundra trim capable of towing 12,000 pounds is the Tundra SR5 trim.1 This work-ready configuration comes with a tow hitch receiver and Integrated Trailer Brake Controller, making it optimized for pulling more intensive weight than the entry-level SR. It also has an available TRD Off-Road Package (depending on the bed and cab setup), letting you haul impressive numbers off the beaten path.
Is the Toyota Tundra good for pulling a trailer?
Yes, the Toyota Tundra offers a suite of features specifically designed to simplify your towing journey. For instance, as early as the SR5, the Tundra comes standard with an Integrated Trailer Brake Controller and TOW/HAUL drive modes that reduce the stress on your chassis and the trailer. Available features, like the TRD Pro With Tow Mirrors Grade Package and the Tow Teck Package, provide improved visibility of your cargo.
What is the payload capacity of the 6.5-foot bed on the 2025 Tundra?
The maximum payload of a 6.5-foot bed on the 2025 Tundra is 1,940 pounds on the SR and SR5, but different configurations can offer different payload capacities. The Limited trim with a 6.5-foot bed, for instance, only has a 1,700-pound payload capacity with a 4x2 drivetrain or a 1,645-pound limit with the same body configuration and a 4x4 drivetrain.
